Quainton Virtual Stockbook - Goods Vehicles - Permanent Way Vehicles

BR Dogfish Ballast Wagon No. DB983905

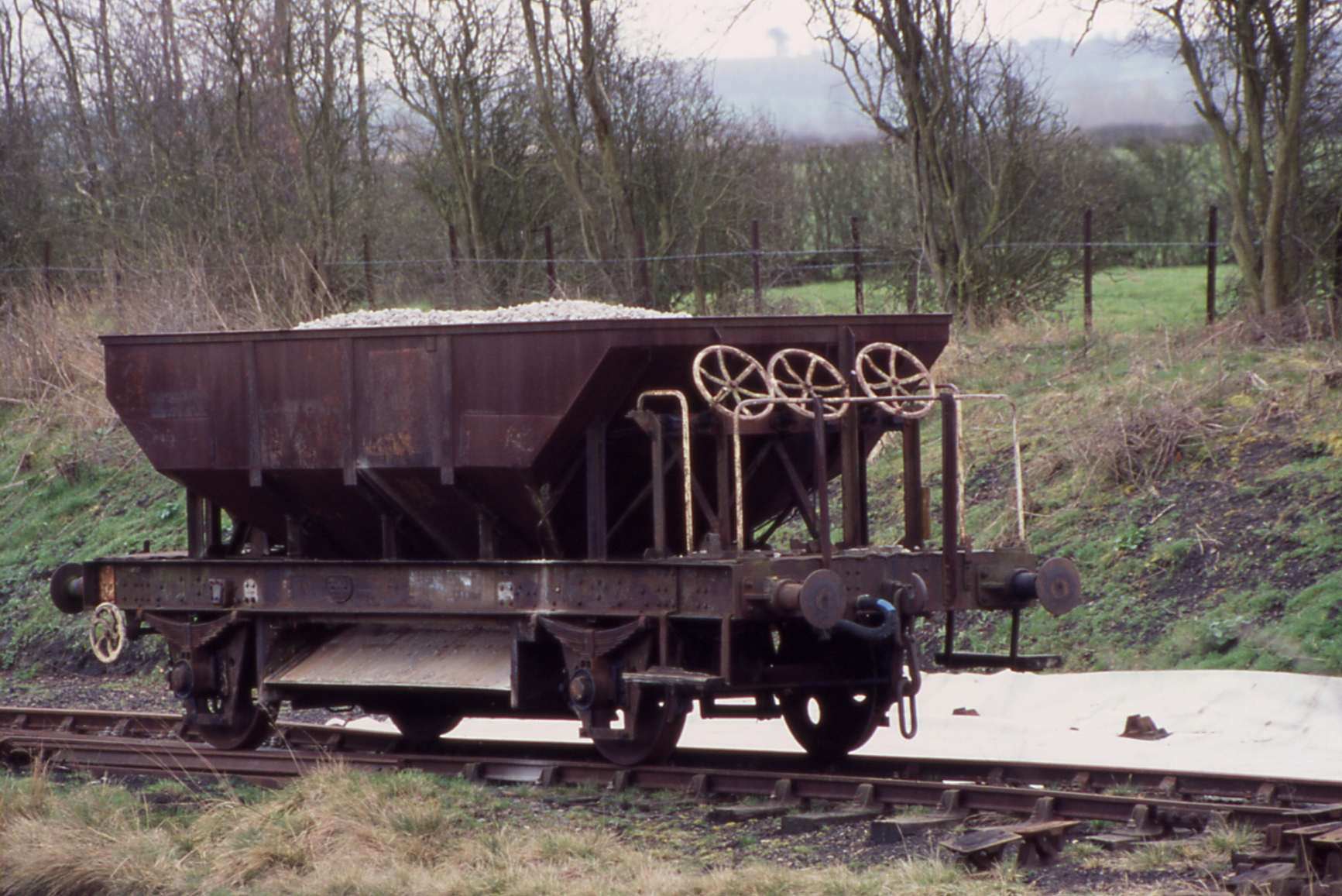

Dogfish on P Way duty in Down Yard

Photo:
Tim Cook - Dogfish on P Way duty in Down Yard


DB983905 was built at Shildon in 1961 to lot 3340. It weighs 24 tons, has standard OLEO pneumatic buffers and Timken roller bearings. This four-wheeled vehicle is designed to drop ballast between the rails and on both sleeper ends via separate controllable openings, codenamed dogfish. If differs from the catfish ballast wagon (DB992568) which can only drop ballast between the rails. Withdrawn from BR service in May 1990, it arrived at Quainton in 1999.

With our catfish ballast wagon and shark brake van, we can now make up a complete permanent way train.


Origin :- BR Date Built :- 1961 Number :- DB983905
Type :- Ballast Wagon Builder :- BR - Shildon Wheelbase :-
Owner :- QRS Status :- Operational Location :- Up Yard
Accession No.: W/0117 Arrival Date :- 1999

Text © Quainton Railway Society / Photographs © Quainton Railway Society or referenced photographer
