Quainton Virtual Stockbook - Goods Vehicles - Permanent Way Vehicles

BR Catfish Ballast Wagon No. DB992568

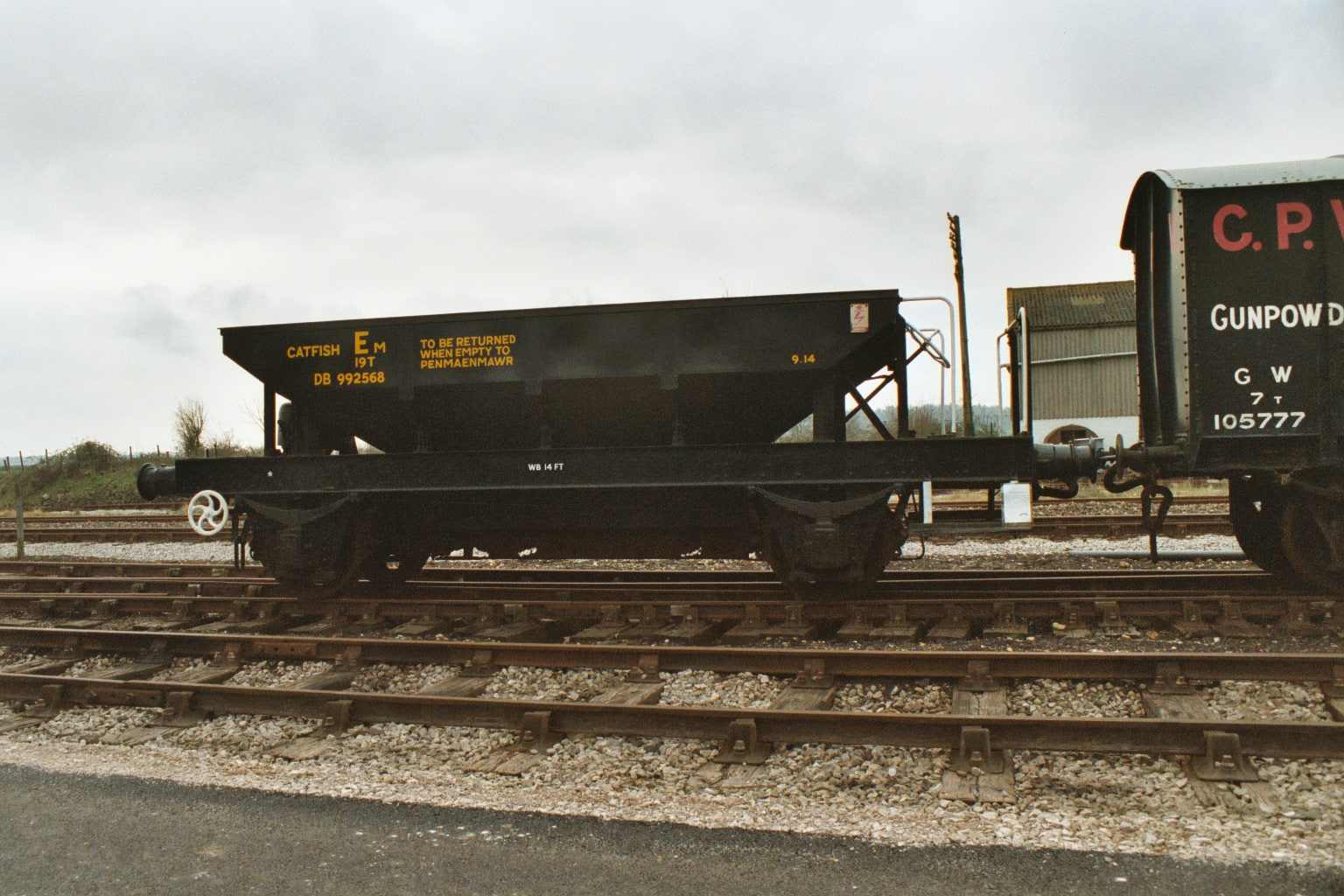

Alongside the Gunpowder Wagon

Photo:
Robert Frise - Alongside the Gunpowder Wagon


DB992568 was built by Metro-Cammell in 1953 to lot 2682, diagram 1/586, 715 being built being built to this diagram altogether. It has a 20 ton bottom-discharge ballast hopper for engineers' use, codenamed "catfish". Fitted with controlled doors, it has vacuum brakes and used by British Rail and now by QRS for ballasting work. It has "To be returned when empty to Penmaenmawr" (a stone ballast quarry) painted on the side. Withdrawn from BR service in October 1986, it arrived at Quainton in 1987.

If differs from the dogfish ballast wagon (DB983905), which is designed to drop ballast between the rails and on both sleeper ends. The catfish ballast wagon drops ballast between rails only. With our dogfish ballast wagon and shark brake van, we can now make up a complete permanent way train.

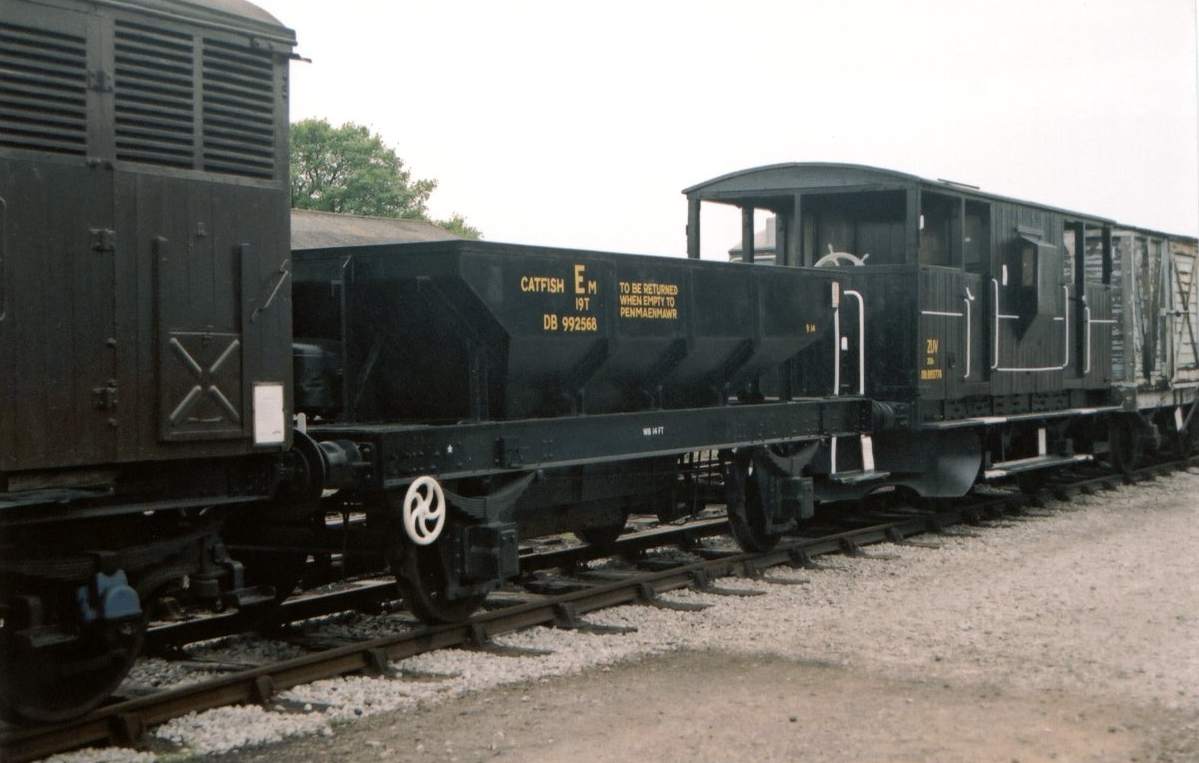

Stabled with the Shark!

Photo:
Robert Frise - Stabled with the Shark!


Origin :- BR Date Built :- 1953 Number :- DB992568
Type :- Ballast Wagon Builder :- Metro-Cammell Wheelbase :- 14' 0"
Owner :- QRS Status :- Operational Location :- Up Yard
Accession No. :- W/0092 Arrival Date :- 1987

Text © Quainton Railway Society / Photographs © Quainton Railway Society or referenced photographer
